PLC Ransomware Recovery: The Runbook for Controllers, HMIs, SCADA and Engineering PCs

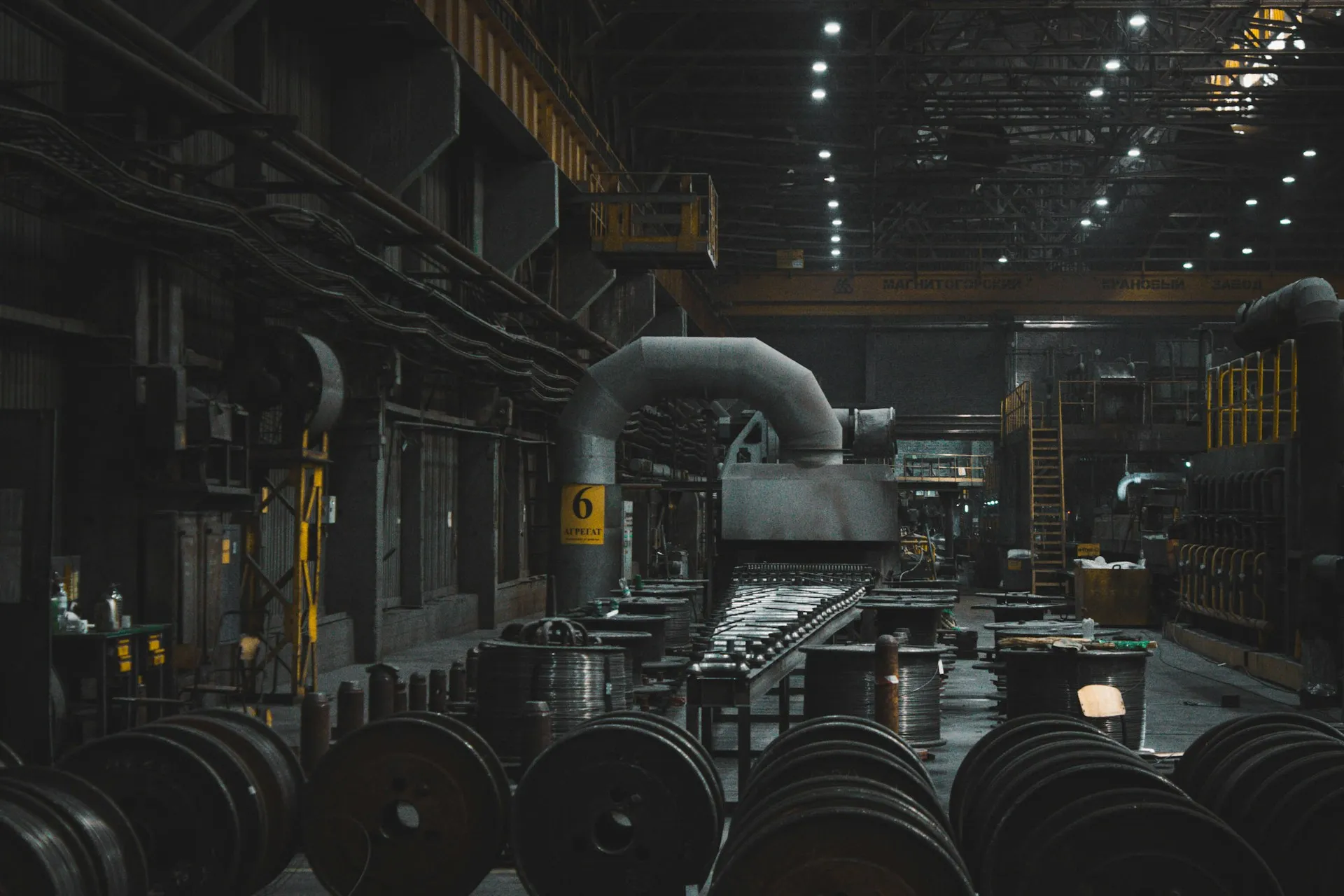

PLC ransomware recovery is the work of getting a plant’s control systems back to a known, trusted state after an attack: verifying or restoring controller programs, rebuilding HMIs and SCADA servers, and bringing engineering workstations back so the plant can be changed again. In most incidents the PLCs keep running. What stops production is the loss of the Windows systems around them, and what prolongs the outage is not knowing whether the programs in the controllers can still be trusted.

This page sets out the recovery sequence, what has to exist before the incident for that sequence to work, why offline and immutable copies decide the outcome, and how to validate restored logic. It is written for controls and maintenance leaders working alongside an incident response team, not as a substitute for one. It sits under the automation change management hub.

What ransomware does to a plant

Asset	Typical state after an attack	Restore from	How to validate
PLCs and safety controllers	Usually still running; may have been altered in a targeted attack	Last known-good program held offline	Upload and compare with the known-good version; functional and safety test
HMI terminals (Windows-based)	Often encrypted or untrusted	Clean image plus the HMI project	Check screens, alarms and write paths against the controller
SCADA and historian servers	Often encrypted; the primary target alongside IT	Image from before the incident window, or a rebuild from installers	Licences, tag database, connections, historian gaps
Engineering workstations	Often encrypted; may hold the only project copies	Clean image built from known-good media	Software releases, licences, no persistence of the attacker
Network devices	Usually intact; configuration may be altered	Saved configuration	Compare running configuration with the saved copy
Robots, drives, CNC	Usually intact	Their own backups	Compare where tools allow; test motion before release

The trap is the engineering workstation. In many plants it is the only place the current projects live. If it is encrypted and nothing was kept offline, the plant can no longer prove what its controllers should contain, and every program becomes suspect.

The PLC ransomware recovery runbook

The order matters. Restoring a server onto a network the attacker can still reach invites re-infection, and reconnecting a controller before its program is verified risks running a tampered machine.

1. Contain and make safe. Isolate the OT network from IT and the internet at the boundary firewall. Decide with operations whether each line keeps running, which is often possible, or stops in a controlled way. Preserve evidence for the incident responders, and notify the people your plan names, including insurers. Joint U.S. agency guidance on primary mitigations for OT puts the ability to revert to manual operation at the centre of this step, and asks that it is tested before it is needed.
2. Assess and scope. List which systems are encrypted, which are suspect and which are clean, and establish the earliest time the attacker may have been present. That time sets which backups can be trusted: anything taken after it is suspect.
3. Build a clean engineering workstation from offline, known-good media, on an isolated network. Install the engineering software releases the plant needs from offline installers, with licences. Nothing else in the sequence can happen without it.
4. Restore infrastructure. Verify switch and firewall configurations against saved copies, restore the backup server or change management repository from its offline copy, and confirm it is clean before connecting anything to it.
5. Verify and restore controllers. Upload the running program from each controller and compare it with the last known-good version from before the incident window. Where they match, leave the controller alone. Where they differ, investigate, then restore the known-good version during a controlled stop. Start with the controllers whose process is most critical or most hazardous.
6. Rebuild SCADA and historian servers from images that predate the incident window, or from installers and saved projects if no trusted image exists. Re-apply licences and certificates, and expect gaps in historian data.
7. Restore HMIs, from a clean image plus the HMI project. Check that each screen’s write actions reach the right controller tags.
8. Restart in stages. Bring lines back one at a time, with functional and safety tests, heightened monitoring and the IT connection restored last, through a reviewed firewall rule set. Then change every password and key the attacker may have seen.

Where the hours go. In practice step 3 and step 5 dominate. A plant that has to find installers for a 2012 software release, or review two hundred programs by eye, measures recovery in weeks. Our article on manufacturing downtime shows how quickly that cost compounds.

Before PLC ransomware recovery: what has to exist

Item	Why it matters	Where to keep it
Offline known-good programs for every controller, robot and drive	The reference for step 5	Immutable or disconnected storage, plus an off-site copy
Clean workstation image with the engineering software installed	Step 3 in hours rather than days	Offline media, refreshed after software changes
Installers and licence files for every engineering release in use	Old releases may not be downloadable any more	With the offline backups
Server and HMI images	Steps 6 and 7	Offline, with dates recorded
Passwords, keys and recovery keys (including BitLocker)	Imaging and restores fail without them	A sealed, offline credential store
Asset inventory with criticality	Sets the restore order	Printed copy plus the offline set
The runbook itself, rehearsed	People follow the plan they have practised	Printed, in the control room

An inventory sets the order. Without one, recovery starts with whatever is loudest. The OT asset inventory page explains how to build one that records criticality and backup status together.

Offline and immutable copies

An attacker with administrator rights can reach anything that is online. That includes the backup share, the change management server and any cloud sync that deletes when the source deletes. The copy that survives is one the attacker cannot alter:

• Immutable storage, where backups cannot be changed or deleted for a set retention period, even by an administrator
• Disconnected media, rotated on a schedule and stored away from the network
• Separate credentials for the backup system, not shared with the Windows domain

This is the same rule CISA gives every sector in its #StopRansomware Guide: offline, encrypted backups, tested regularly, and maintained “golden images” of critical systems. In a plant the golden image is the clean engineering workstation with every software release it needs already installed.

Keep enough history. If the attacker was present for weeks before encrypting, the last clean backup may be a month old. Retain known-good versions well beyond the typical dwell time, and mark each one with the date it was verified.

Validating restored logic

Restoring a program is not the same as trusting it. Three checks close the gap:

• Compare against the known-good version, not against the most recent backup. A compare tool that reads the device and shows differences rung by rung turns this into a review of exceptions. Tools differ here; see the software comparison.
• Check data and configuration, not only logic: setpoints, recipes, safety parameters, I/O configuration and firmware.
• Test the machine, including safety functions, before production runs on it.

Vendors in this market increasingly frame their products around recovery. AMDT reports that thyssenkrupp Presta says “restarts that used to take several hours can now be realised in just a few minutes” (AMDT case study), and Copia now describes itself as a “first responder” for OT incident recovery (TNW). Both are vendor claims; the point for a buyer is that recovery speed is now something to test in a trial. Our octoplant disaster recovery page looks at one approach in detail.

Rehearsing the runbook

A runbook that has never been rehearsed is a document, not a capability. The cheapest rehearsal is a tabletop exercise: operations, controls, maintenance, IT and the incident response lead in one room for half a day, walking through a scenario step by step.

Useful questions to put to the room:

• The engineering workstations are encrypted. Where is the clean image, and who can build from it?
• Which line restarts first, and who decided that?
• The last clean backup of the packaging PLC is five weeks old. What changed since, and how would we know?
• Who is allowed to download to a safety controller, and are they reachable tonight?
• Who tells customers, and when?

Then run one technical drill a year: rebuild an engineering workstation from offline media and restore one non-critical controller from the offline copy, timing each step. The time it takes is the honest estimate of your recovery, and the gaps it finds are the plan for the following year.

Limits and open questions

• Safety systems need their own restore and revalidation procedure, with the people qualified to sign them off.
• Firmware tampering is rare but possible in targeted attacks; restoring a program does not restore firmware. Know how you would reflash a module.
• Spares. A controller that cannot be trusted may need replacing. Hold or source spares at the right firmware.
• Regulatory reporting obligations differ by sector and country. Know yours before the event.

How to evaluate your readiness

• Is there an offline, immutable copy of every critical program, verified in the last quarter?
• Could you build a clean engineering workstation without the network, today?
• Do you hold installers and licences for every engineering software release in use?
• Can a tool compare each running controller with a dated known-good version?
• Is criticality recorded so the restore order is decided in advance?
• Has the runbook been rehearsed with operations, controls and IT together?
