ControlLogix vs CompactLogix: How to Actually Choose

ControlLogix vs CompactLogix comes down to three architectural questions: do you need controller redundancy, how many separate networks must the controller sit on, and is the I/O local to one machine or spread across an area. Both families run the same Logix firmware, the same Studio 5000 environment and the same tag model, and code written for one will largely run on the other. That is exactly why the comparison confuses people: the differences are architectural, not functional.

Three questions settle it in nearly every case.

Question 1: Do you need controller redundancy?

If yes, the decision is made. ControlLogix supports redundancy. CompactLogix does not. Rockwell’s redundancy systems manual covers ControlLogix 5580, ControlLogix 5570 and GuardLogix 5580 controllers, and no CompactLogix.

Redundancy here means a paired controller chassis with automatic switchover, so a processor failure does not stop production. It requires the modular ControlLogix chassis, redundancy modules and a supported firmware combination, and it roughly doubles the controller cost before engineering.

Be honest about whether you need it. Redundancy protects against a controller failure, which is rare. It does not protect against the far more common causes of downtime: a power supply, a network fault, an I/O module, or somebody downloading the wrong program. We have seen plants buy redundancy while running a flat, unmanaged network that fails an order of magnitude more often. Redundancy is the right answer for continuous process where an unplanned stop is measured in tens of thousands of dollars per hour, and an expensive answer to the wrong question elsewhere.

Question 2: How many networks does the controller sit on?

A CompactLogix 5380 has two built-in Ethernet ports, and that is what it has. The 5380 user manual describes two modes:

• Dual-IP mode, the out-of-the-box setting on current firmware, puts the ports on two separate networks. Port A2 can only join a device-level network. The controller does not route TCP or bridge I/O connections between the two, although it does bridge HMI, messaging and socket traffic.
• Linear/DLR mode makes both ports one network, used for a device-level ring or a daisy chain.

A ControlLogix chassis takes multiple communication modules, so one controller can sit on several separate networks at once: a plant network, an isolated machine network, a remote I/O network, and a legacy ControlNet or DeviceNet segment during a migration.

This is the most common genuine reason to choose ControlLogix on a machine that would otherwise suit CompactLogix. Segmentation is a real requirement, and a controller that cannot bridge segments forces either a flat network or extra hardware. Two ports give a machine one upstream network and one device network. They do not give you a third network, a legacy segment, or a security boundary, and treating them as any of those is a mistake we see regularly. The networks page covers the segmentation design itself.

Question 3: What does the I/O architecture look like?

	ControlLogix	CompactLogix 5380
Local I/O	Modules in the same 1756 chassis as the controller	5069 Compact I/O clipped onto the controller, no chassis
Remote I/O	Extensive, over EtherNet/IP or legacy networks	Over EtherNet/IP
Scale	Large I/O counts, many remote racks	Machine and skid scale
Physical form	Rack and backplane, larger footprint	DIN rail, compact
Availability	Modules hot-swappable, chassis-based	Simpler, fewer moving parts

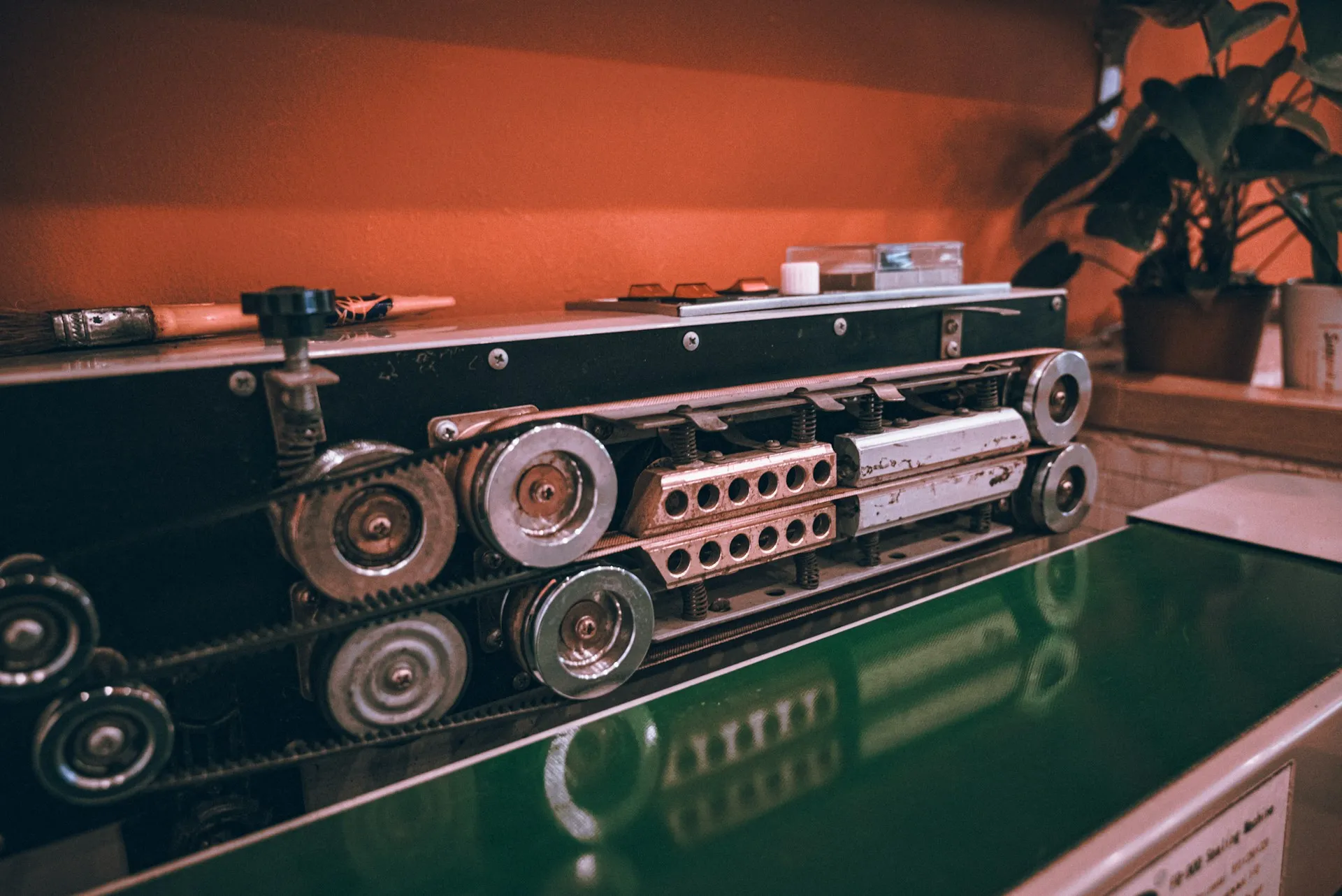

If the application is one machine with its I/O local to it, CompactLogix is the right shape. If it is a line or an area with I/O distributed across several panels and a mix of network types, ControlLogix is the right shape. The footprint and the cost follow from that, rather than driving it.

The CompactLogix 5480 case

The 5480 is a CompactLogix with a Windows 10 IoT Enterprise host on the same hardware, sharing a backplane between the real-time controller and the Windows side. It exists for edge applications where you want data processing, a local visualization runtime or a connectivity gateway at the machine without a separate industrial PC.

Evaluate it on the Windows side, not the controller side. The controller is a CompactLogix. What you are buying is a Windows host that now shares a lifecycle, a patching schedule and a failure domain with a production controller. That is a genuine convenience and a genuine coupling, and whether it is a good trade depends on who patches the Windows host and how they think about change control on a machine that is running.

What does not decide it

Memory and scan rate. On current-generation hardware these are rarely the binding constraint, and when they are, the cause is usually code structure rather than the controller.

Price. The controller is a small fraction of a machine or line project. Choosing the smaller controller to save several thousand dollars, then discovering you need a second network or redundancy, costs more than the saving.

What the integrator prefers. A legitimate input, not a decision criterion. Ask why, and whether the reason is about your plant or about their standard bill of materials.

The default answer

For a standalone machine or skid, one or two networks, no redundancy requirement: CompactLogix 5380.

For a line or area, several networks, distributed I/O, or any availability requirement that justifies redundancy: ControlLogix 5580.

And in both cases, check what the site already runs. A plant standardised on one family gains more from staying standardised than from optimising any single machine.

A worked example (illustrative). A beverage plant is specifying controls for a new filler and the case packer behind it. The filler has I/O in three panels along the machine, must sit on the plant network and an isolated machine network, and has to talk to a DeviceNet valve island that will not be replaced until next year. That is three networks and distributed I/O: ControlLogix. The case packer is one skid with its I/O in one panel, one machine network and an uplink to the line controller: CompactLogix 5380. Neither needs redundancy, because the line stops for changeovers every shift and a processor failure would cost less than the redundant hardware.

What goes wrong

• ControlLogix on every machine “for consistency”, paying for chassis, power supplies and communication modules a single skid never uses
• A CompactLogix stretched across an area, then a third network or a legacy segment arrives and the answer becomes a protocol gateway nobody wanted
• Dual-IP treated as a firewall. It separates TCP traffic, but HMI and messaging still bridge across, so it is not a security boundary
• Redundancy bought instead of a network design, so the controller is the most reliable part of a system that fails at the switch
• A 5480 nobody owns. The Windows side drifts unpatched because controls thinks IT owns it, and IT does not know it exists

Checklist before you specify

• Is controller redundancy justified by the cost of an unplanned stop?
• How many separate networks, including legacy segments, must the controller join?
• Is the I/O in one panel or several?
• Which family and firmware revision does the site already standardise on?
• Can the maintenance team support it, with spares and a licensed laptop?
• If a 5480: who owns the Windows host, and how is it patched?

---
